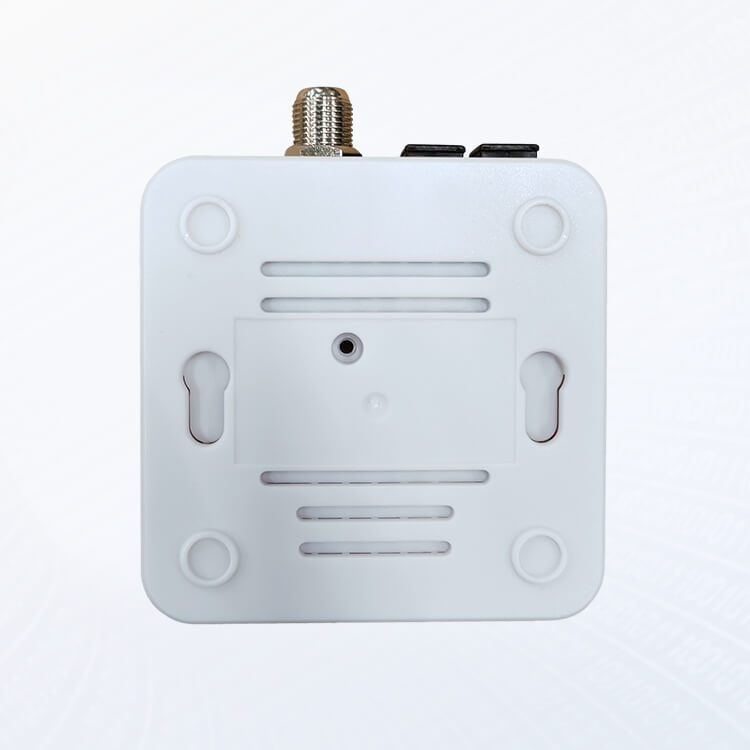

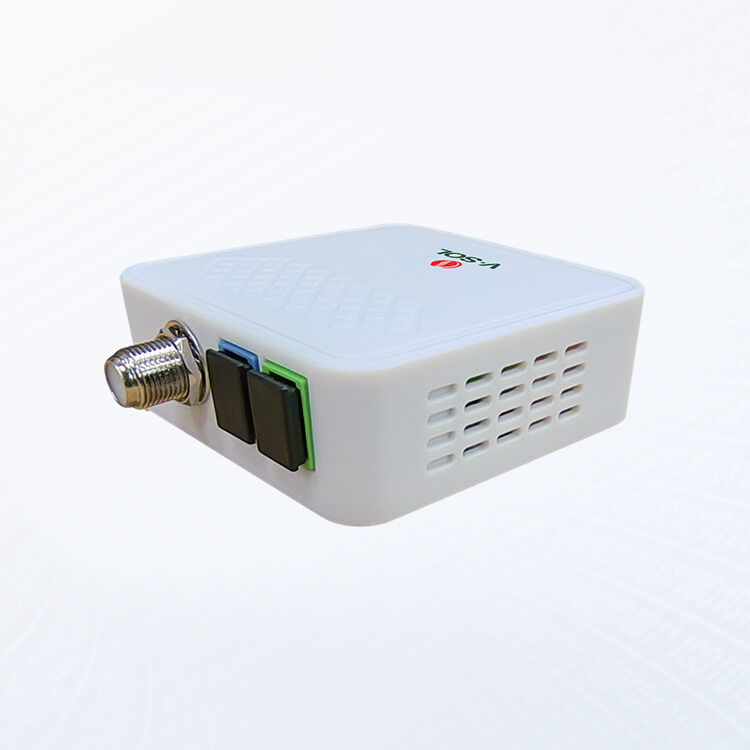

V8601C-P CATV无源光接收机是专为家庭数字电视光纤而设计的。 它采用高灵敏度光接收管、无电源、无功耗。 当输入光功率Pin=0dBm时，输出电平Vo =58dBμV。 它可以经济，灵活地用于将光纤应用到家庭中。 内置WDM，CATV带宽1550±20nm。

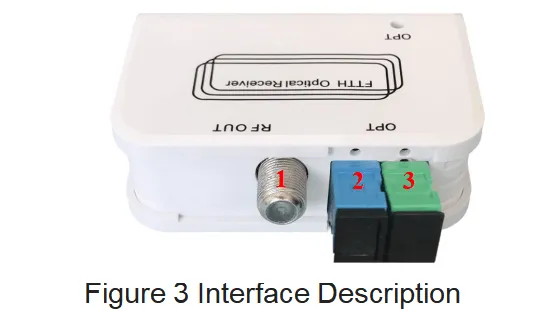

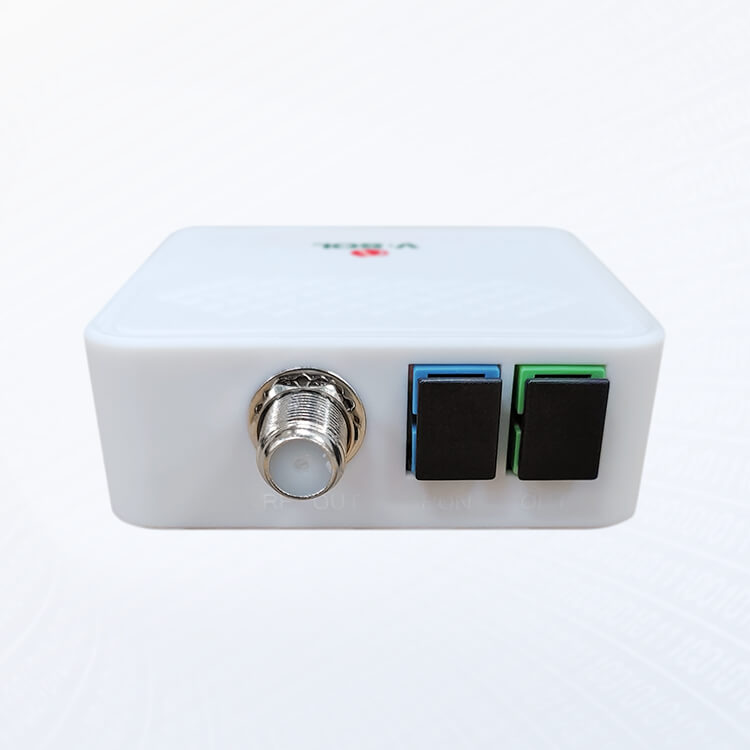

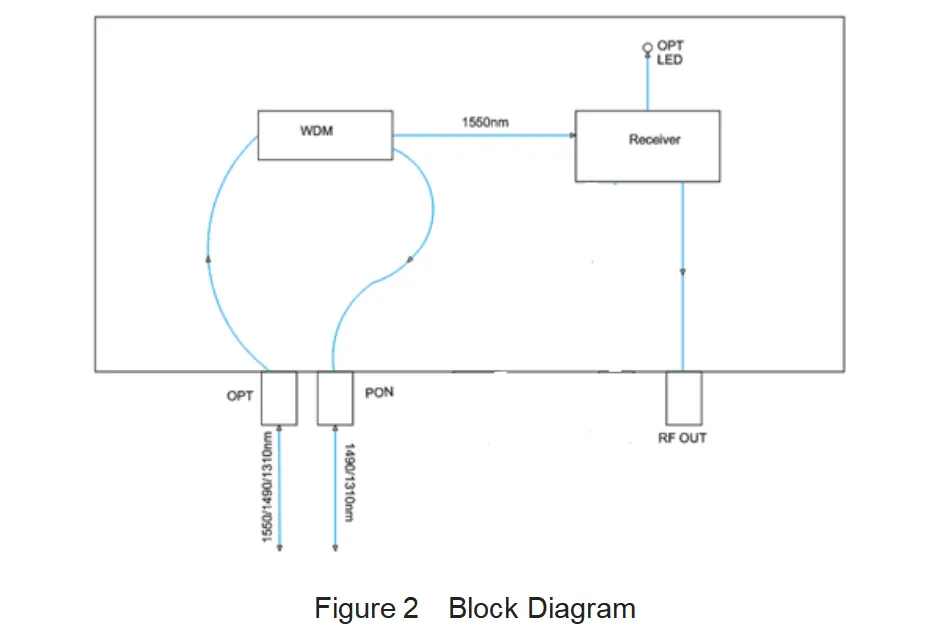

| Port Type |
Function |
Detailed description |
| 1 |
RF OUT |
RF OUT, F connector |
| 2 |
PON |
1490/1310mn data interface SC/PC |
| 3 |
Optical Input |
1550/1490/1310mn Optical input SC/APC |
►无电源，无功耗
►带宽45〜1050MHz
►输出电平=60dBμV（Pin = 0dBm）
| Description |
value |
Notes |
| Optical Characteristics |
wavelength |
(nm) |
1540~1563 |
CATV |
| 1550/1490/1310 |
Com port |
| 1490/1310 |
For ONT |
| Response |
(A/W) |
≥0.85 |
1310nm |
| ≥0.9 |
1550nm |
| Optical Power Input Range |
(dBm) |
+2 ~ -9 |
|
| Optical Return loss |
(dB) |
≥55 |
|
| connector |
|
SC/APC |
|
| RF Characteristics |
Bandwidth |
(MHz) |
45 ~ 1050 |
|
| output level |
(dBμV) |
>60±2 |
Digital Tv（Pin＝0dBm） |
| output impendence |
(Ω) |
75 |
|
| Output port |
|
1 |
|
| RF connector |
|
F connector |
imperial |
| Digital TV link Characteristics |
OMI |
(%) |
4.3 |
|
| MER |
(dB) |
≥33 |
Pin= -5dBm |
| BER |
(dB) |
<1.0E-9 |
Pin= -5dBm |
| Physical Characteristics |
Operating Temperature |
(℃) |
-20 ~ +50 |
|
| Storage Temperature |
(℃) |
-40 ~ +85 |
|
| Working Humidity |
(%) |
5 ~ 95 |
|
| Dimensions |
nm |
75X 55X 28 |
|
