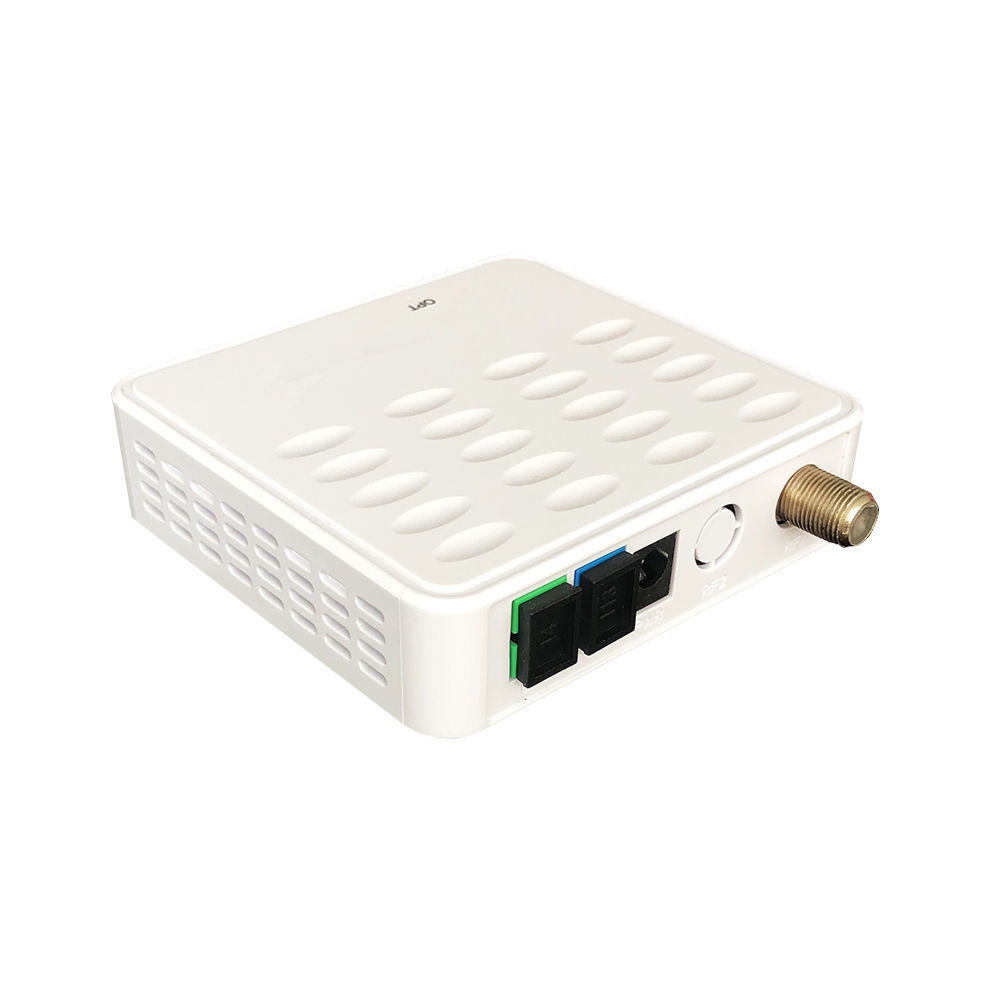

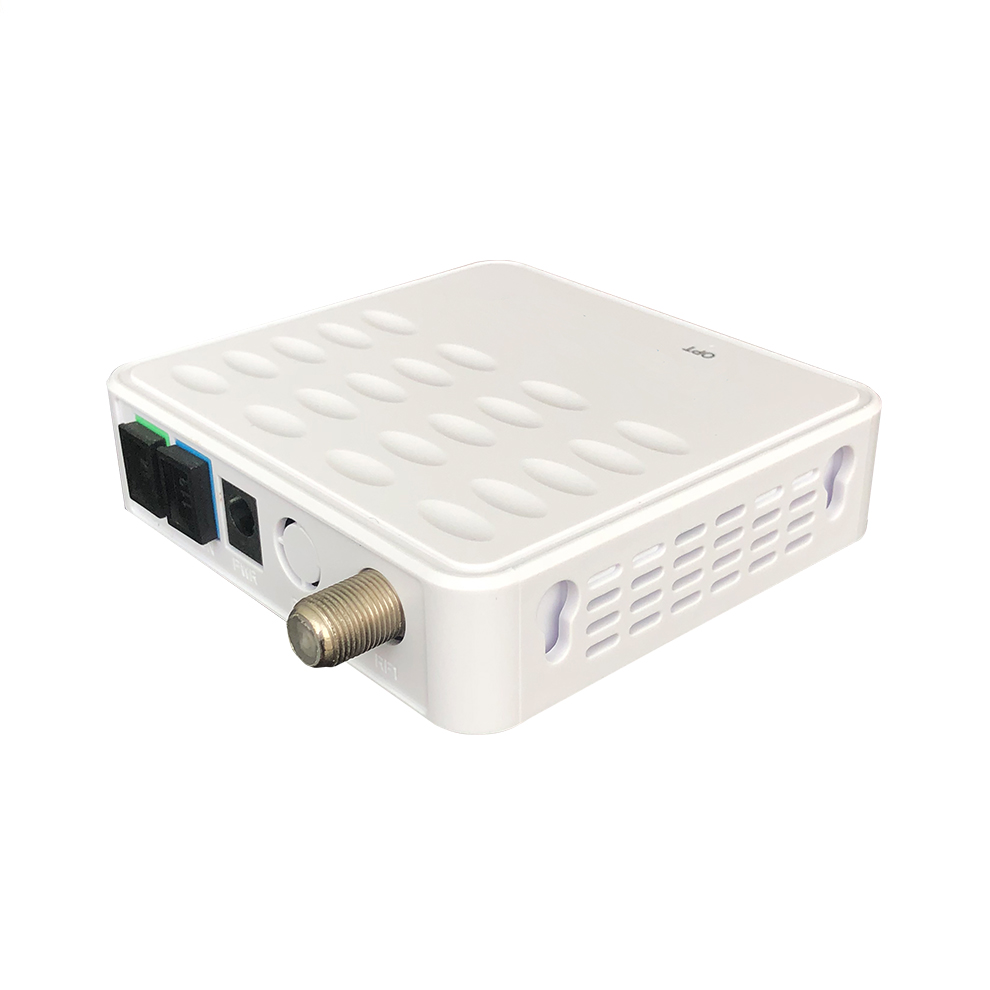

| 概述 |
V8601C-1是室内紧凑型超低光功率接收机。光AGC功能可选，AGC范围宽10dB，控制范围可根据客户要求订制，满足不同应用需求，提高系统指标。可内置WDM环出PON光信号。V8601C-1专为FTTH网络应用设计，外形小巧美观，高性能，低接收光功率和低成本，为运营商提供宽带有线电视网络系统提供高可靠、高性价格的解决方案。
| 特性 |
■ 带宽可达1 GHz
■ 光AGC功能可选
■ 低的光功率接收范围:-18~2dBm
■ 输出电平可达76dBuV （-15~-5dBm光输入时，双输出68dBuV）
■ 低功耗<1.5W
■ 1个射频口
■ 输入光波长：1100～1600nm
■ 高性能：MER≥33dB(-15~-5输入光功率)
■ 可选带AGC，AGC范围（-2~-12dBm内的任意10dB内）可由用户选订。
■ 可选带IP网管
| 具体参数 |
|
|
Description |
Value |
Unit |
Conditions / Notes |
|
|
|
Optical Specifications (Forward Path) |
||||
|
1 |
Wavelength |
1550 |
nm |
CATV |
|
|
1490/1310 |
nm |
XPON |
|||
|
1577/1270 |
nm |
10G PON |
|||
|
2
3 |
Optical Power Input Range |
+2～-20 |
dBm |
|
|
|
AGC Range |
+2～-15 |
dBm |
|
||
|
4 |
Optical Input Return Loss |
≥45 |
dB |
|
|
|
|
RF Specifications (Forward Path) |
||||
|
4 |
Bandwidth |
47～1003 |
MHz |
|
|
|
5 |
Flatness |
±1.0 |
dB |
47～1003MHz，At 25 ℃ |
|
|
6 |
Slope |
0~2.0 |
dB |
47～1003MHz，At 25 ℃ |
|
|
7 |
Temperature Stability |
±1.5 |
dB |
In the operating temperature range (-25 ~ +65 ℃) |
|
|
8 |
Output Level |
75±2 |
dBuV |
-15dBm input optical power, The analog channel，per channel modulation 4.0%, in the 860MHz point test, at 25℃ |
|
|
9 |
Impedance |
75 |
Ohm |
|
|
|
10 |
Return Loss（47～1000MHz） |
≥12 |
dB |
At 25 ℃ |
|
|
11 |
MER |
≥30 |
dB |
-15~-5dBm input optical power |
|
|
≥24 |
dB |
-20~-16, input optical power |
|||
|
12 |
Power |
< 1.0 |
W |
|
|
|
|
Environmental Parameters |
||||
|
13 |
Operating Temperature |
-25～65 |
℃ |
|
|
|
14 |
Storage Temperature |
-40～70 |
℃ |
|
|
|
15 |
Storage Humidity |
≤95 |
％ |
Non- condensation |
|
|
|
User Interface |
||||
|
16 |
Optical Connector Type |
SC/APC in, SC/PC out |
|
Optical Connector Optional |
|
|
17 |
Power supply |
DC12V/1A |
|
|
|
|
18 |
RF Output |
RG6 Connector 1 port |
|
|
|
|
19 |
Optical Indicator |
Shine Red or Green color |
|
Optical power <-16dBm ,red Optical power >–16dBm ,green |
|
|
20 |
Housing |
90×85×25 |
mm |
|
|
|
21 |
Weight |
0.15 |
kg |
|
|

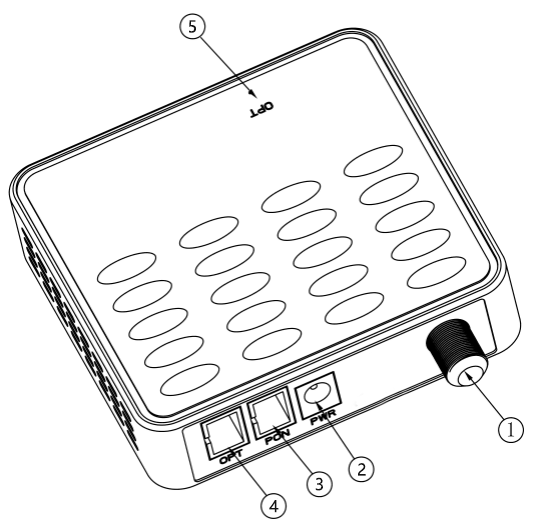

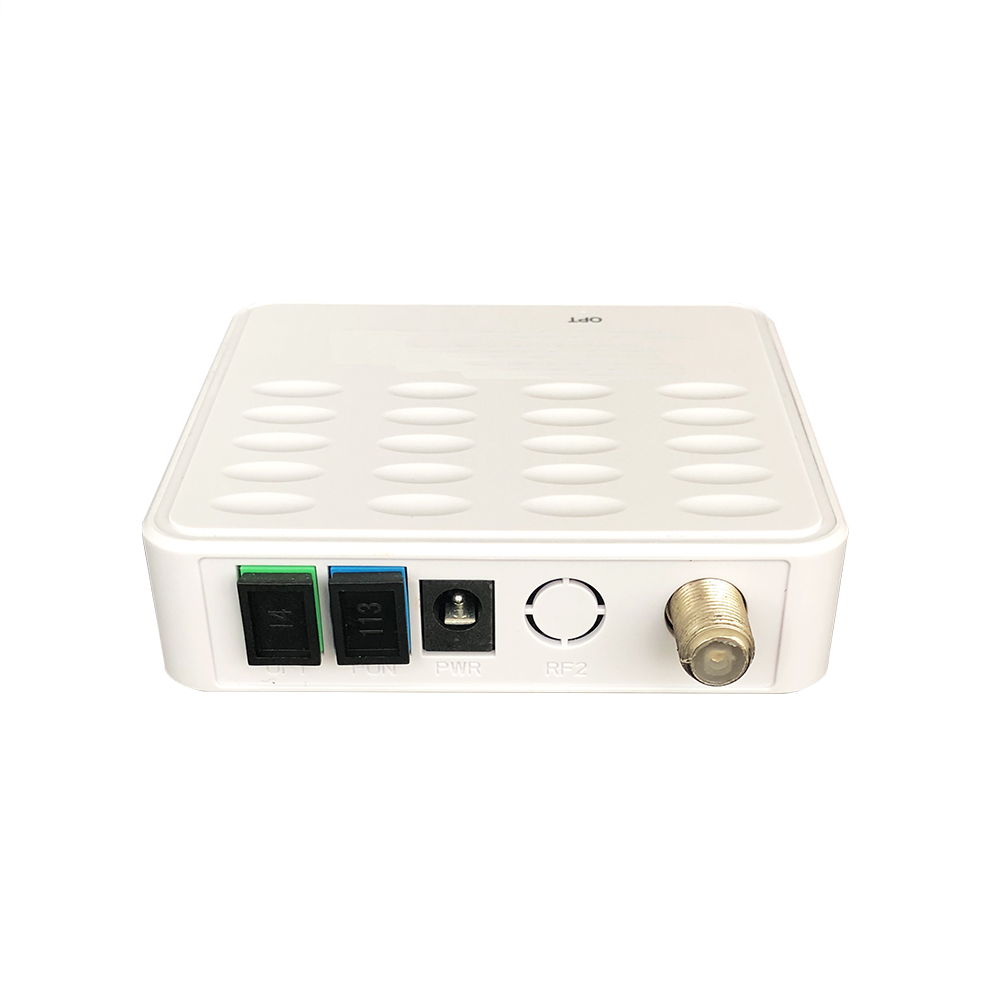

| 界面说明 |
