专为运营商招标，尽享高速无忧

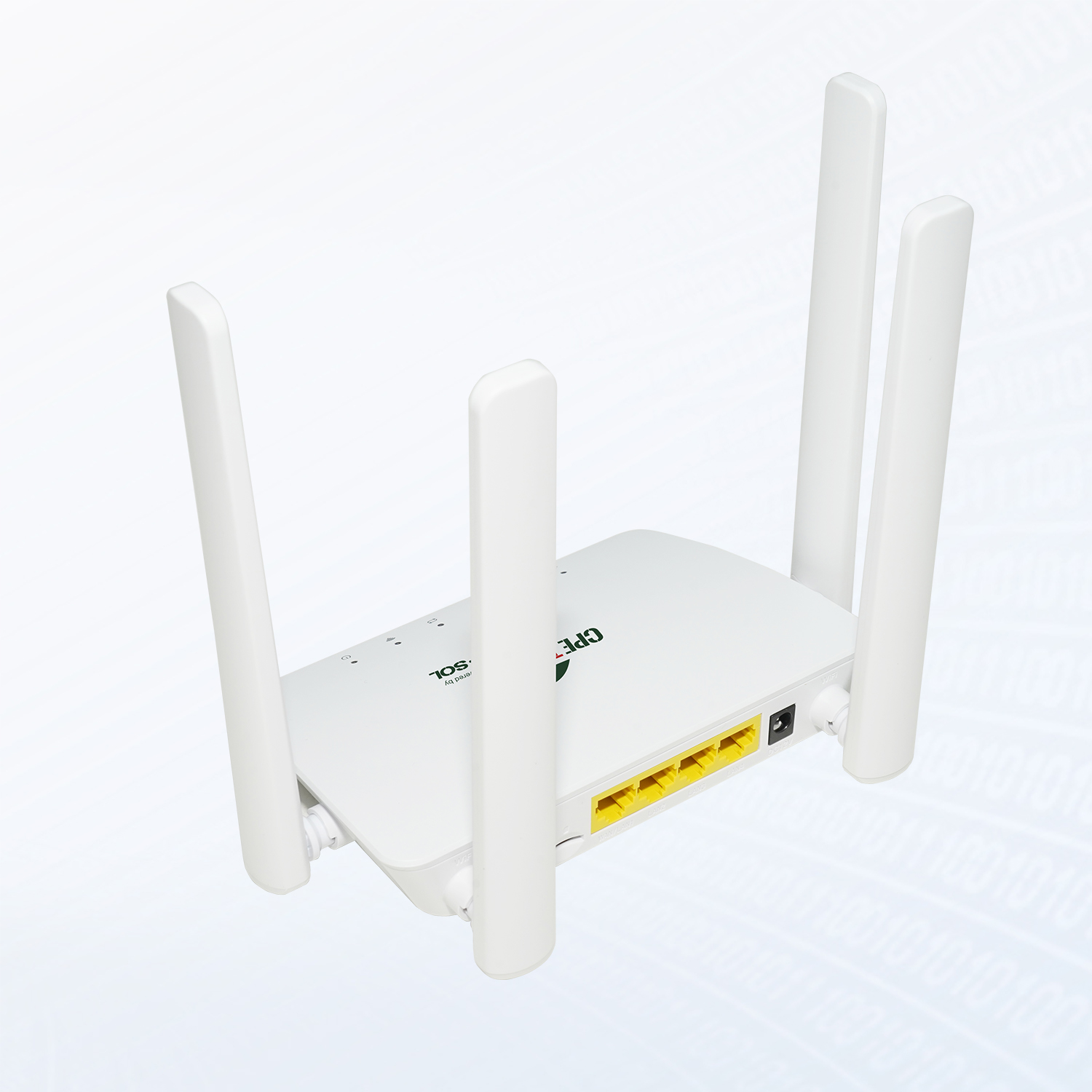

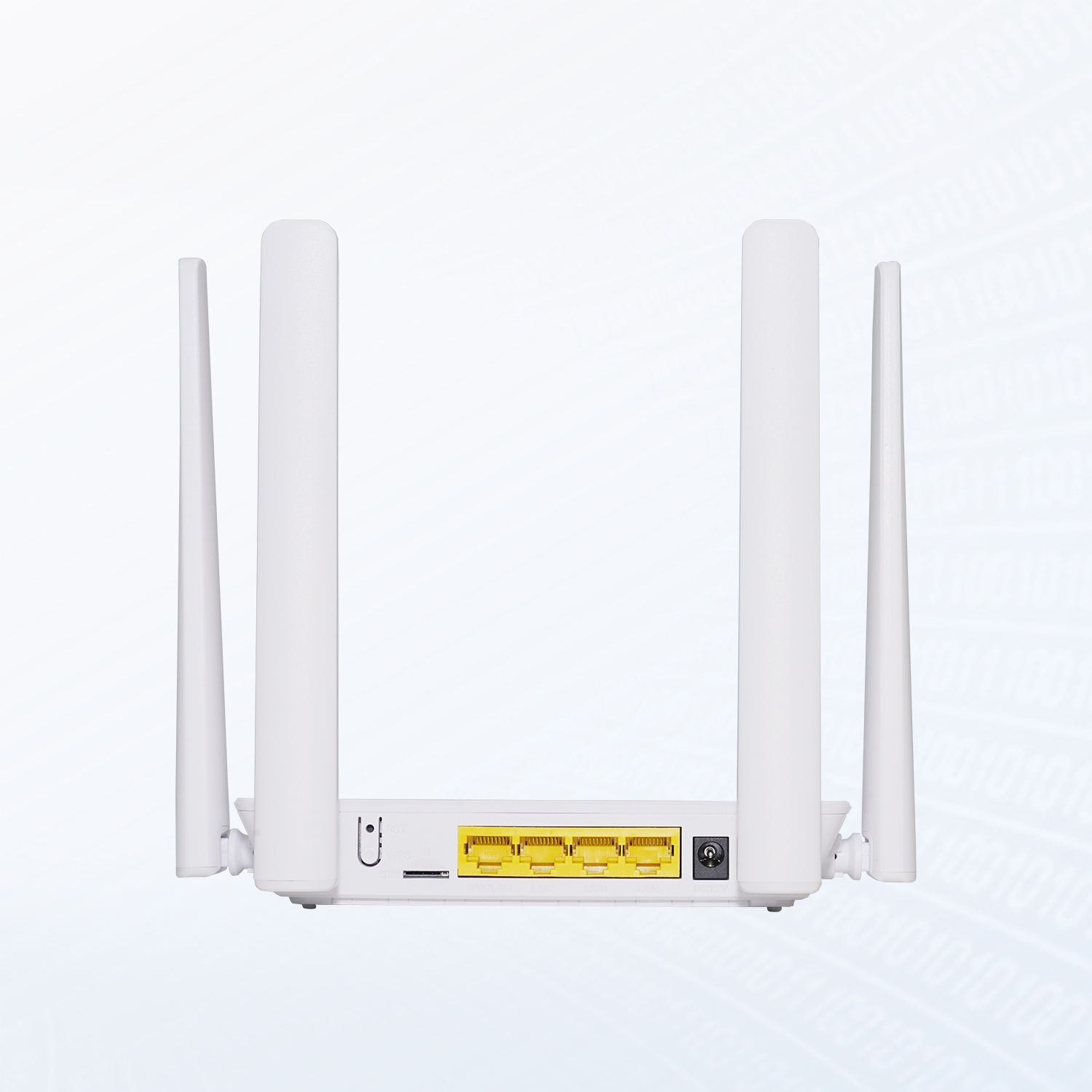

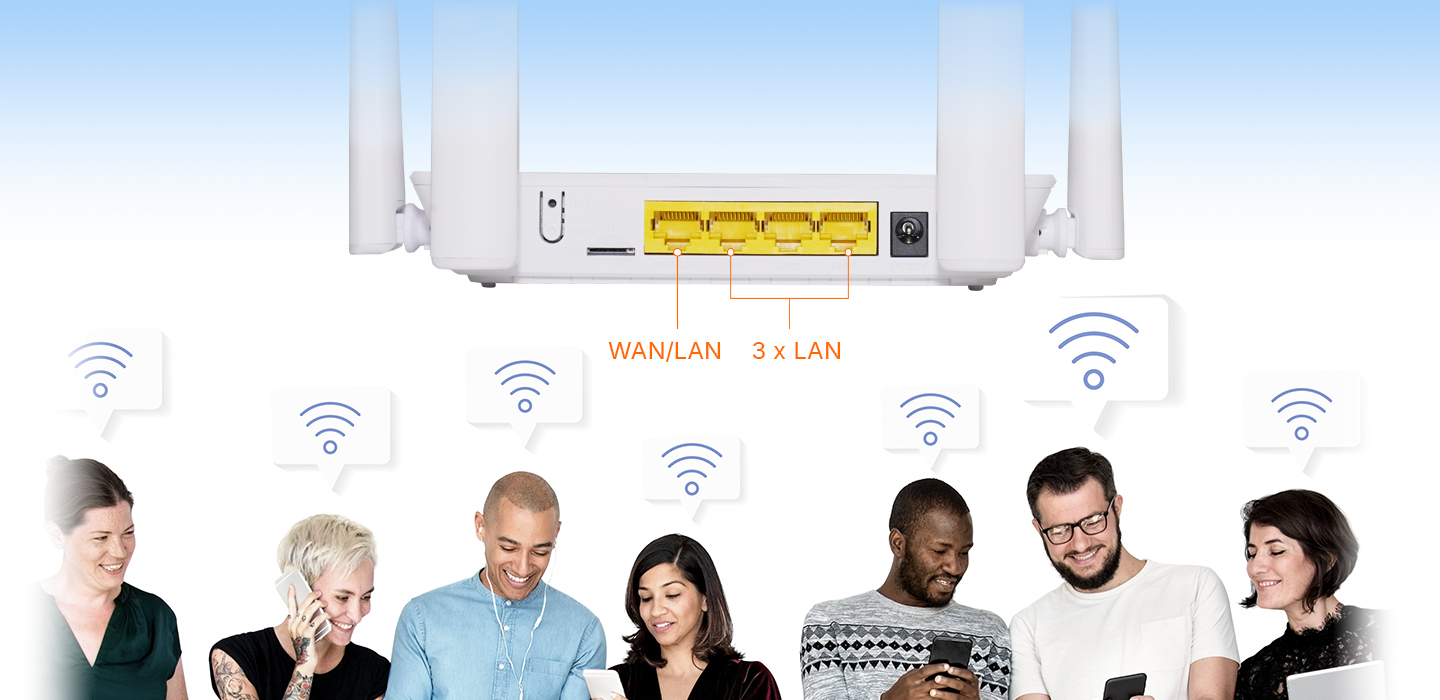

4网口设计，多用户轻松接入
提供4个100Mbps以太网口，可同时有线连接3~4台主机

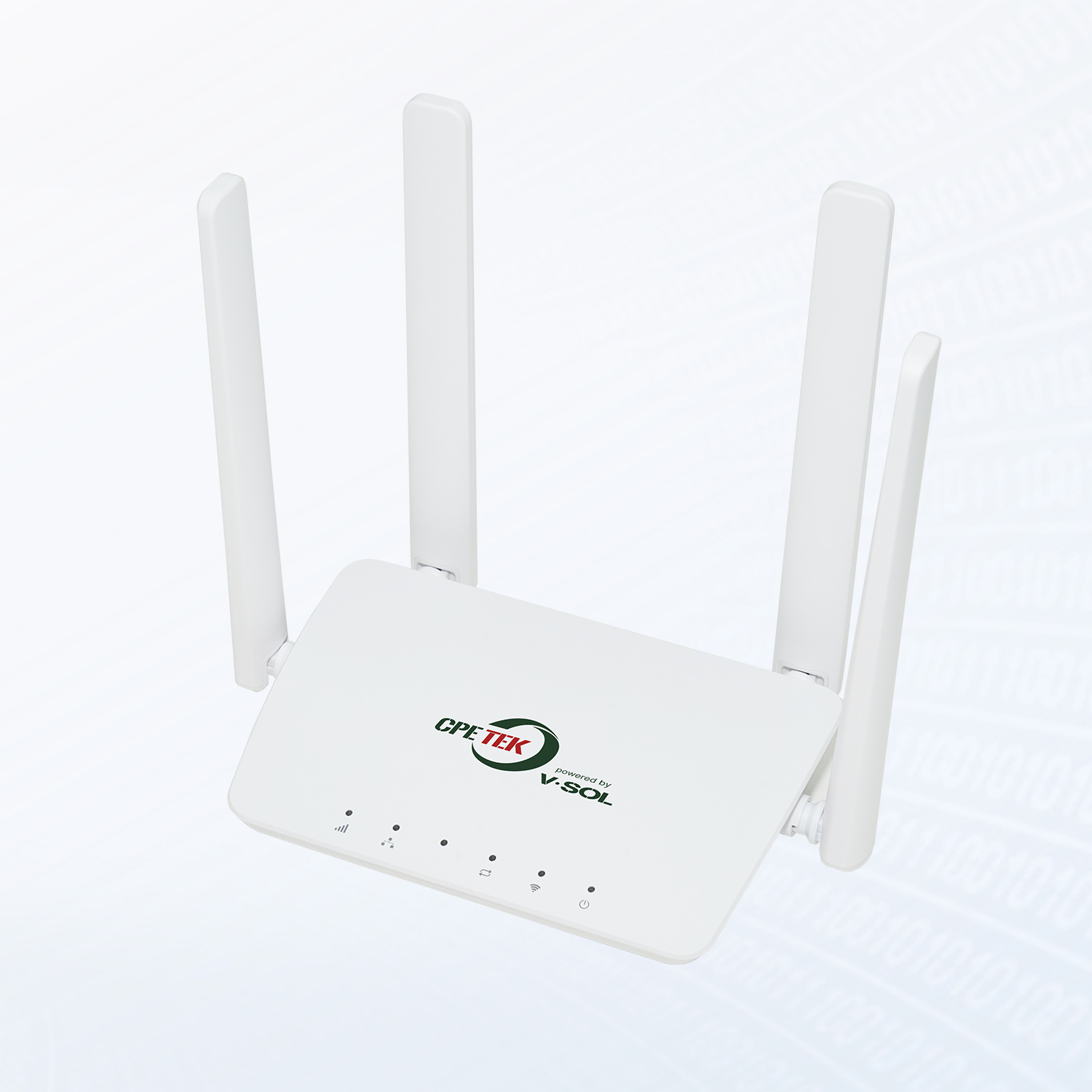

4外置天线，网络畅通无阻
采用2*2 MIMO技术，配备2根外置Wi-Fi天线，信号强劲稳定，轻松穿透3道墙
电信级防护，全方位网络守护
高性能防火墙配置，支持端口过滤/端口映射功能
多应用场景，家庭办公皆适用
|
技术参数 |
||
|
型号 |
XMC1843 |
XMC1843E |
|
芯片方案 |
ASR1803L |
ASR1803L (512Mbit+128Mbit) |
|
频段 |
XMC1843(e)-EU: FDD LTE: B1/B3/B5/B7/B8/B20/B28 TDD LTE: B38/B40/B41 UMTS: B1/B5/B8 XMC1843(e)-AU： LTE-FDD: B1\B2\B3\B4\B5\B7\B8\B28\B66 LTE-TDD: B40 WCDMA: B1\B2\B4\B5\B8 |
|
|
协议版本 |
4G: 3GPP R9 Cat4 + 3G: 3GPP R7 |
|
|
传输速率 |
FDD：DL/UL up to 150Mbps/50Mbps, TDD： DL/UL up to 110Mbps/10Mbps, DL/UL up to 21Mbps/5.76Mbps |
|
|
Wi-Fi芯片 |
RTL8192FR |
ASR5803W |
|
Wi-Fi频段 |
2.4GHz, 1~13Channel |
|
|
发射功率 |
17±2dBm @ 802.11b 15±2dBm @ 802.11g 14±2dBm @ 802.11n |
|
|
接收灵敏度 |
l <-76dBm at the antenna port,QPSK,11Mbps,1024 Byte PSDU @ 802.11b l <-65dBm at the antenna port,64QAM,54Mbps,1024 Byte PSDU @ 802.11g l -64dBm at the antenna port,64QAM,65Mbps,4096 Byte PSDU @ 802.11n(HT20) l <-61dBm at the antenna port,64QAM,135Mbps,4096 Byte PSDU@ 802.11n(HT40) |
l <-76dBm at the antenna port, QPSK,11Mbps,1024 Byte PSDU @ 802.11b l <-65dBm at the antenna port, 64QAM,54Mbps,1024 Byte PSDU @ 802.11g l -64dBm at the antenna port, 64QAM, 65Mbps,4096 Byte PSDU@ 802.11n(HT20) |
|
Wi-Fi天线 |
External, 2 x 2 MIMO |
External, 1 x 1 SISO |
|
Wi-Fi协议 |
802.11b/g/n, 20MHz/40MHz |
802.11b/g/n |
|
Wi-Fi速率 |
802.11b:Up to 11 Mbps 802.11g: Up to 54 Mbps 802.11n: Up to 300 Mbps |
802.11b:Up to 11 Mbps 802.11g: Up to 54 Mbps 802.11n: Up to 72.2 Mbps |
|
尺寸 |
150*105*30mm |
|
|
重量 |
230g |
约233g |
|
电源 |
DC 12V,0.5A |
|
|
接口 |

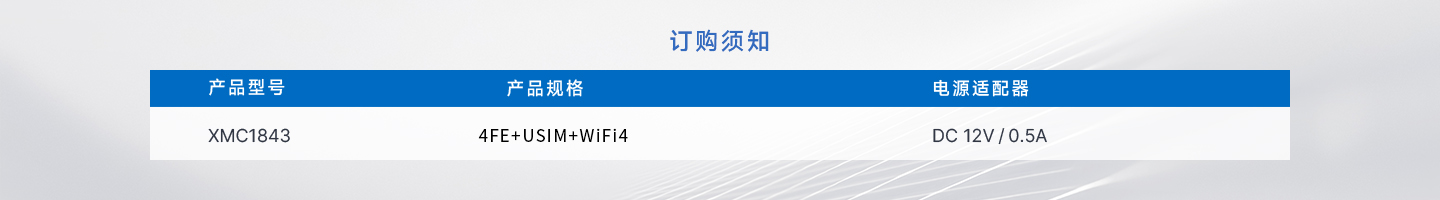

4FE+USIM+Wi-Fi4 4FE+USIM+Wi-Fi |
|
|
指示灯 |
POWER, Wi-Fi, WAN/LAN, DATA , LTE |
|
|
按钮 |
Reset/WPS |
|
|
特色功能 |
TR069/FOTA |
|
