| 产品简介 |

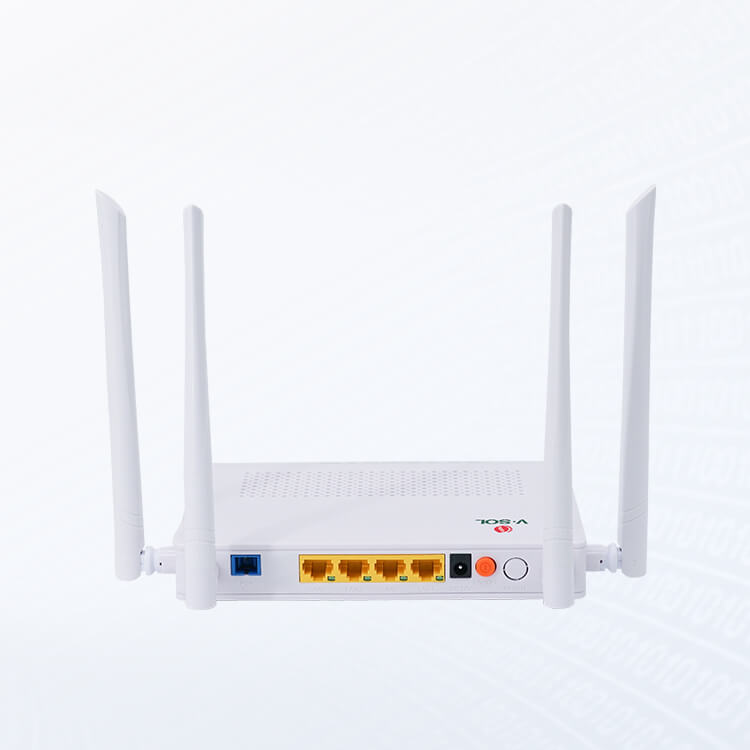

4GE+WiFi 5+USB3.0 GPON/EPON ONT WiFi Mesh终端设备是为满足固网运营商的FTTH和三网融合业务需求而设计的。盒子采用成熟的芯片组（Realtek）技术，具有较高的性能价格比，同时采用WiFi5（双频）、Layer 2/3、WiFi EasyMesh等技术。通过V-SOL OLT支持ONT设备的全面管理。高可靠性，易维护，保证不同业务的QoS。并完全符合IEEE802.3ah、ITU-T G.984.x等技术规范和中国电信GPON设备的技术要求。
| 具体参数 |
| Technical item | 1*xPON+4*GE+WiFi5+USB3.0 |
| PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0～+4dBm Transmission distance: 20KM |
| Wavelength | Tx1310nm,Rx 1490nm |
| Optical interface | SC/UPC connector |
| LAN interface | 4*10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector |
| USB interface | USB 3.0, Transmission Rate: 4.8Gbps |
| WiFi interface | Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz (WiFi 4) 5.0GHz Operating frequency: 5.150-5.825GHz (WiFi 5 wave 2) WiFi:4*4 MIMO,,5dBi antenna, rate up to 1.167Gbps,Multiple SSID TX power: 11n–22dBm/11ac–24dBm |
| Operating Enviroment | Temperature: 0℃～+50℃ Humidity: 10%～90%（non-condensing） |
| Storing Enviroment | Temperature: -30℃～+60℃ Humidity: 10%～90%（non-condensing） |
| Power Supply | DC 12V/1.5A,12W |
| Dimension | 178mm×120mm×30m(L×W×H) |
| Net weight | 0.42kg |
