型号:V1600D4
规格:4口 EPON OLT
重量:3.4kg

  产品介绍

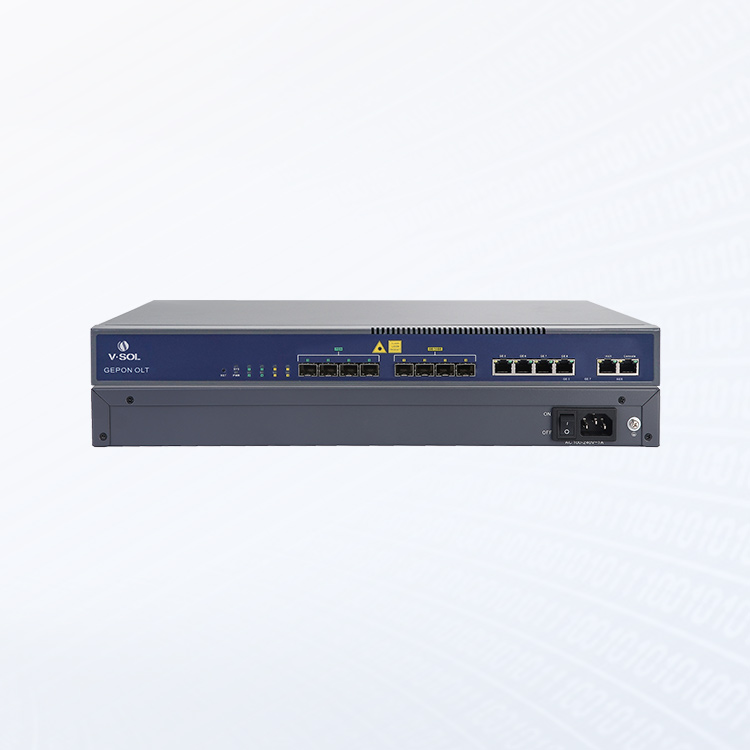

  V-SOL V1600D4是一个1U高度的19英寸机架安装产品。该OLT的特点是小巧、方便、灵活、易于部署、性能高。它适合部署在紧凑的房间环境中。该OLT可用于 “三网合一”、VPN、IP摄像机、企业局域网和互联网服务提供商的应用。
  V1600D4提供4GE(铜缆)和4*SFP/SFP+插槽的独立接口用于上行,4*EPON OLT端口用于下行。它可以支持总共256个ONU,每个PON端口支持64个ONU。

  功能特征

Management Ports

  • 1*10/100BASE-T out-band port, 1*CONSOLE port



PON Port Specification

  • Transmission Distance: 20KM
  • EPON port speed” Symmetrical 1.25Gbps
  • Wavelength: TX-1490nm, RX-1310nm
  • Connector: SC/UPC
  • Fiber Type: 9/125μm SMF
  • TX Power: +4.5dBm~+9dBm
  • Rx Sensitivity: -32dBm
  • Saturation Optical Power: -8dBm



Management Mode

  • SNMP/Telnet/CLI/WEB/SSH v2



Management Function

  • Fan Group Control;
  • Port Status monitoring and configuration management;
  • Online ONU configuration and management;
  • User management, Alarm management

Layer 2 Feature

  • 16K MAC address
  • Support port VLAN and protocol VLAN
  • Support 4096 VLANs
  • Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ
  • Support IEEE802.3d trunk
  • Support RSTP, MSTP
  • QoS based on port, VID, TOS and MAC address
  • IEEE802.x flow control
  • Port stability statistic and monitoring;
  • Support P2P Function

Multicast

  • IGMP snooping
  • 256 IP Multicast Groups

DHCP

  • DHCP server
  • DHCP relay
  • DHCP snooping

Layer 3 Features

  • ARP proxy
  • Static route
  • 1024 hardware Host Routes
  • 512 hardware Subnet Routes
  • Support RIPv1/v2, OSPFv2/v3

Support PPPoE+




Security Management

  • Support IEEE802.1x, Radius, Tacacs+
  • Support DHCP Snooping, DHCP Opiton82, IP Source Guard
  • Support HTTPs, SSHv2

IPv6 Feature

  • Support IPv6 Neighbor Discovery, SLAAC Snooping
  • Support DHCPv6 Server, DHPCv6 Relay, DHCPv6 Snooping
  • Support IPV6 Static Route
  • Support IPV6 Dynamic Route Protocol: RIPng, OSPF6
  • Support MLD V1/V2
  • Support IPv6 ACL
  • Support IPv6 SNMP,Telnet,HTTPS,SSH management


EPON Function

  • Support port-based rate limitation and bandwidth control
  • In compliant with IEEE802.3ah standard
  • Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
  • Support Dynamic Bandwidth Allocation (DBA)
  • Support ONU auto-discovery/Link detection/remote upgrade of software
  • Support VLAN division and user separation to avoid broadcast storm
  • Support various LLID configurations and single LLID configuration
  • Different user and different services could provide different QoS by means of different LLID channels
  • Support power-off alarm function, easy for link problem detection
  • Support broadcasting storm resistance function
  • Support port isolation between different ports
  • Support ACL to configure data packet filter flexibly
  • Specialized design for system breakdown prevention to maintain a stable system
  • Support dynamic distance calculation on EMS online





V1600D4
底架 机架 1U高度,可安装于19英寸标准机架
上联口 数量 8
以太网端口 4
SFP/SFP+数量 4
EPON 数量 4
物理接口 SFP插槽
连接器类型 PX20, PX20+, PX20++, PX20+++
最大分光率 1:64
背板带宽 (Gbps) 128
端口转发率(Mpps) 71.424
尺寸(xx) 442mm*200mm*43.6mm
重量 3.2kg
电源供应 AC:100~240V, 50/60Hz
功耗 30W
操作环境 工作温度 -20~+60°C
储存温度 -40~+70°C
相对湿度 5~95% (非冷凝)

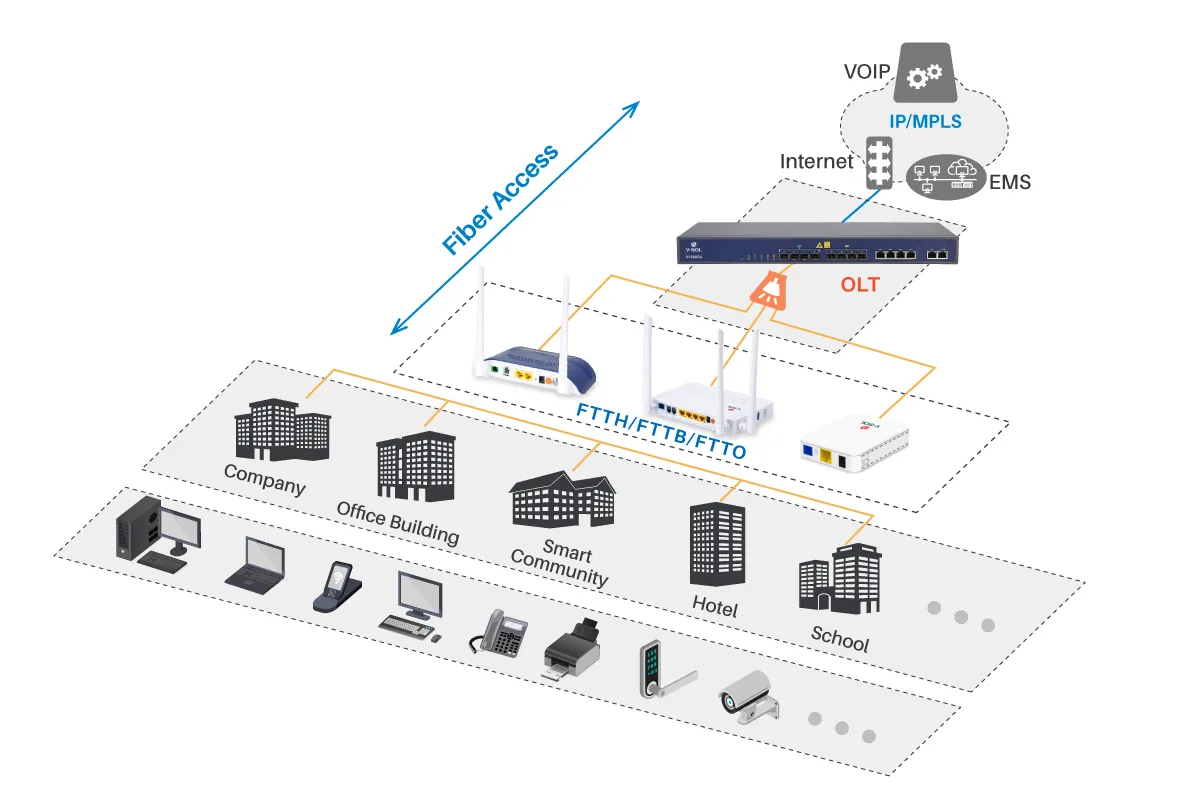

  典型应用图
