| 概述 |
V8616系列掺镱掺铒光纤放大器(YEDFA)为用于CATV、FTTx和HFC应用而设计。它通信波长为1550nm，采用1u（ 19 “ ）机架外壳。该产品灵活地满足CATV、FTTx和HFC应用场景的所有要求。该装置选用高性能泵浦激光器和电路(包括ACC和APC)，光输出功率可调且灵活，可满足网络链路损耗预算。V8616系列还为重要参数提供监控和相关警报。设备的状态和管理可以通过VFD前面板显示或通过基于SNMP以太网协议进行远程监控和管理。该设备还支持内置的PLC分配器和FWDM (1310nm/1490nm)光多路复用器的多路输出，适用于三网合一的FTTx网络应用。

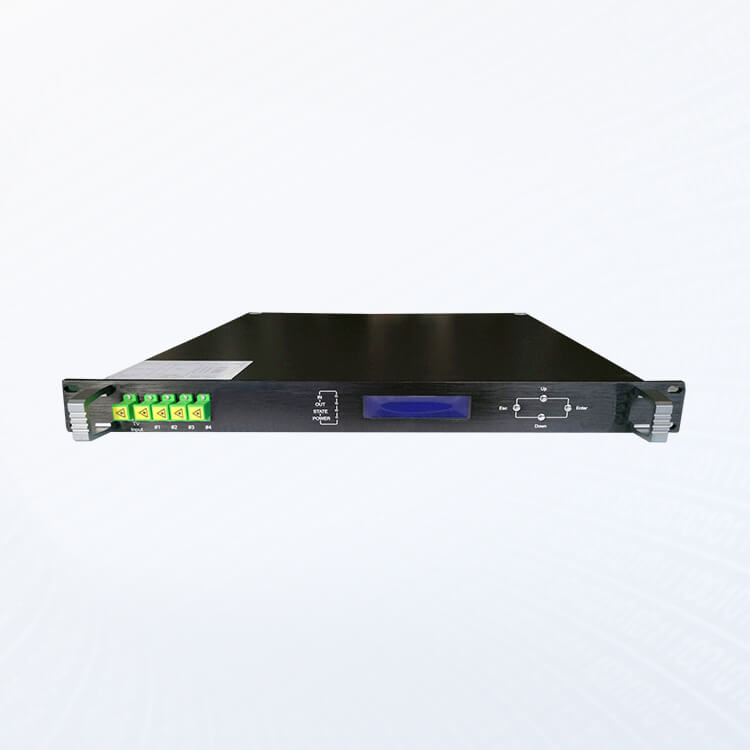

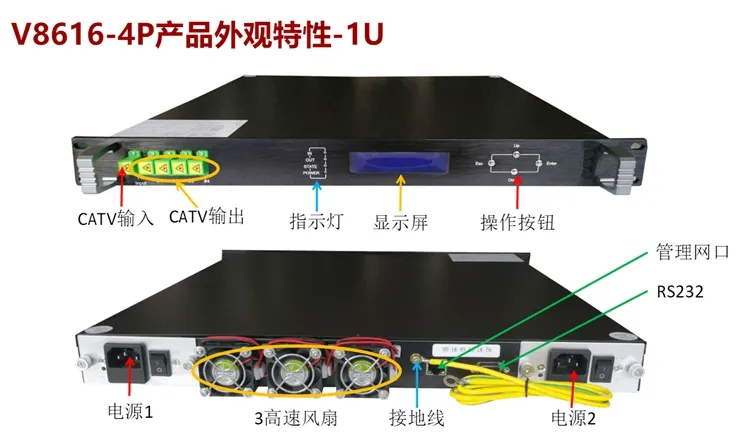

| 产品外观 |
| 主要特点 |
► 标准19英寸1U机架
► 4输出端口
► 输出范围：4*17, 4*19, 4*21dBm可选
► 输出光功率可调 –3 ~ 0dB
► Web浏览器管理
► 功率自动控制(APC)或自动电流控制(ACC)
► 为当地监控LCD前面板显示
► 可配置以太网标准接口RJ45，能实现SNMP协议的远程监测
| 规格参数 |
| 4口 | 8口 | 16口 | 32口 | |
| 不带WDM |  V8616-4P |  V8616-8P |  V8616-16P |  V8616-32P |
| 带WDM |  V8616W-4P |  V8616W-8P |  V8616W-16P |  V8616W-32P |
| 尺寸 (H x W x D) (mm) | 44×483×422 | 44×483×422 | 88×483×422 | |
| 88×483×422 | ||||
| 重量(kg) | 5.5 | 5.5 | 11.5 | 11.7 |
| 11.5 | ||||
| 输出端口 (dBm) | V8616(W)-24-4P:4*17 V8616(W)-27-4P:4*19 V8616(W)-30-4P:4*21 | V8616(W)-29-8P:8*17 V8616(W)-31-8P:8*19 V8616(W)-34-8P:8*22 | V8616(W)-31-16P:16*16 V8616(W)-34-16P:16*19 V8616(W)-36-16P:16*22 | V8616(W)-34-32P:32*16 V8616(W)-36-32P:32*19 V8616(W)-40-32P:32*22 |
| 泵普偏置电流告警范围(mA) | V8616(W)-24-4P: >1000mA,<2800mA V8616(W)-27-4P: >1000mA,<3000mA V8616(W)-30-4P: >1500Ma,<3500mA | V8616(W)-29-8P: >1000mA,<2800mA V8616(W)-31-8P: >1000mA,<3000mA V8616(W)-34-8P: >1500Ma,<3500mA | V8616(W)-31-16P: >1000mA,<3300mA V8616(W)-34-16P: >1500mA,<4800mA V8616(W)-36-16P: >1800mA,<4600mA | V8616(W)-34-32P: >1500mA,<4800mA V8616(W)-36-32P: >1800mA,<4600mA V8616(W)-40-32P: >1800mA,<4600mA |
| 具体参数 |
| Description | Unit | Value | Conditions / Notes |
| EDFA Optical Specifications | |||
| Fiber Connector | nm | SC/APC | |
| Optical Wavelength | nm | 1540 ~1560 | |
| Input Power | dBm | 0~+10 (1550nm) | Recommend ≥3dBm |
| Output Power | dBm | V8616-24-4P: 4*17 V8616-27-4P: 4*19 V8616-30-4P: 4*21 | WDM optional |
| Laser Bias Current (V8616-24-4P) | Pump | 4*17dBm 1800mA±200mA @+6dBm input | Alarm range: >1000mA,<2800mA |
| Laser Bias Current (V8616-27-4P) | Pump | 4*19dBm 2000mA±200mA @+6dBm input | Alarm range:>1000mA,<3000mA |
| Laser Bias Current (V8616-30-4P) | Pump | 4*21dBm 2500mA±200mA @6dBm input | Alarm range:>1500Ma,<3500mA |
| Output Optical Power Stability | dB | 0.1 | @+6dBm Input |
| Noise Figure | dB | 4(max 5.8) | @+6dBm Input |
| Isolation (Input/Output) | dB | 30 | |
| Return Loss (Input/Output) | dB | 55 | |
| Polarization Dependent Gain | dB | max 0.5 | |
| Polarization Mode Dispersion | ps | max 0.5 | |
| Electrical Specifications | |||
| Communication Interface | RJ45 | Supporting Web and SNMP NMS | |
| Input voltage | VAC | 90-265 | -12/-48 V DC(optional) |
| Consumption | W | 40 maximum | |
| Fuse | A | 2 | |
| Connector | IEC | Male power connector | |
| Environmental Specifications | |||
| Operating Temperature | ℃ | -5 ~50 | |
| Storage Temperature | ℃ | -20 ~85 | |
| Storage Humidity | RH% | ≤95 | No Condensation |
| Mechanical Specifications | |||
| Dimension (LxWxH) | mm | 483*422 * 44 | Carton:590* 590 * 200 |
| Weight | kg | < 6 | |
| Mounting | 19” EIA rack, 1U Rack | ||

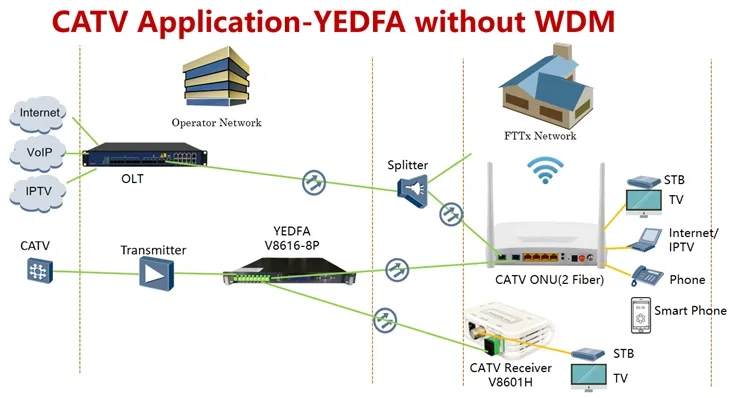

| 应用图例 |
