| 产品介绍 |

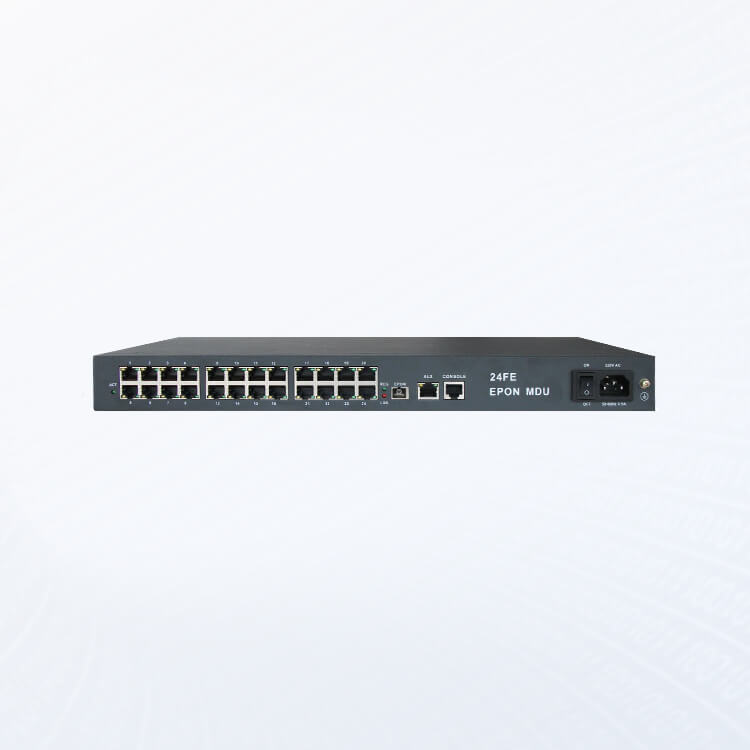

V5628-2A2/2B2 EPON 24FE/EPON 24FE 24POTS MDU 是由 V-Solution 独立开发的具有 “三网融合” 和光纤到建筑 (FTTB) 的 EPON 宽带接入设备。它基于成熟稳定的千兆 EPON 技术和 L3 以太网交换技术，具有高可靠性、良好的服务质量 (QoS) 保证、易于管理和灵活组网的特点。符合 ITU-T 、 IEEE & YD/T 对接入网的技术要求。
| 特殊功能 |
► 支持 OAM SNMP 管理。
► 防雷能力 LAN: 4 千伏，POTS: 4 千伏，AC 功率: 6 千伏。
► 支持 802.1ad (QinQ) 和多播。
► 根据 GR-909 支持线路测试。
► 支持交流或直流电源。
► 支持垂死的喘息。
| 具体参数 |
| Model | V5628-2A2 |
| NNI | 1*EPON(PX20+),SC/UPC |
| UNI | 24*FE |
| Dimension（W×H×D） | 480mm×44.5mm×240mm |
| Console | 3*RJ45（1 For EPON MAC,1 For Configuration,1 For VoIP） |
| Power Input | AC:100~240V or DC:-48V |
| Power Dissipation | ≤50W |
| Operating Temperature | -30~+55℃ |
| Operating humidity | 10~90%RH(non-condensing) |
| Storage Temperature | -40~+65℃ |
| Weight | 5Kg |
| Mounting | 19-inch rack,1U Rack |
| Layer2/3 Function | Up to 16 K MAC address； Support 4K VLANs and IEEE802.1Q/802.1p,based on MAC,IP Subnet and protocol.Support VLAN Double-Tag; Support IEEE802.1QinQ/802.1ad and VLAN transparent transmission; Support port stability statistic and monitoring; Support 1K multicast Route Table and support SCB; Support STP/RSTP; QoS:Support 8 levels CoS priority.Support SP,WRR,SP+WRR; Support IGMP Snooping; Support ACLbased on IP,TCP/UDP and protocol; Support Filter based on port,MAC,VLAN ID and IP(IPv4/IPv6). |
| EPON Function | Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah standard; Up to 20KM transmission Distance; Support Dynamic Bandwidth Allocation (DBA); Support ONU auto-discovery/link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration; Different user and different service could provide different QoS by means of different LLID channels; Support power-off alarm function,easy for link problem detection; Support broadcasting storm resistance function; Support port isolation between different ports; Specialized design for system breakdown prevention to maintain stable system; Support dynamic distance calculation on EMS online; |
| VoIP Funciton | Support SIP(IMS),H.248&MGCP protocol and It can well communicate with the mainstream soft switch platforms in the industry; Support heartbeat function and supports active / standby soft switch platform; Support ITU-T G.711,G.723.1 and G.729 speech codec; Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length; Support high/low speed fax/Modem, bypass fax, and T38 fax; Support InBand / RFC2833/SIP INFO, MD5 authentication, call forward, call waiting, hot-line call, and all kinds of value-added voice service. Multi-party conferencing Support Line testing according to GR-909 Support Modem(56Kbps) Suport PPPoE,DHCP and static IP; Support Web/CLI/SNMP |
