| 产品介绍 |

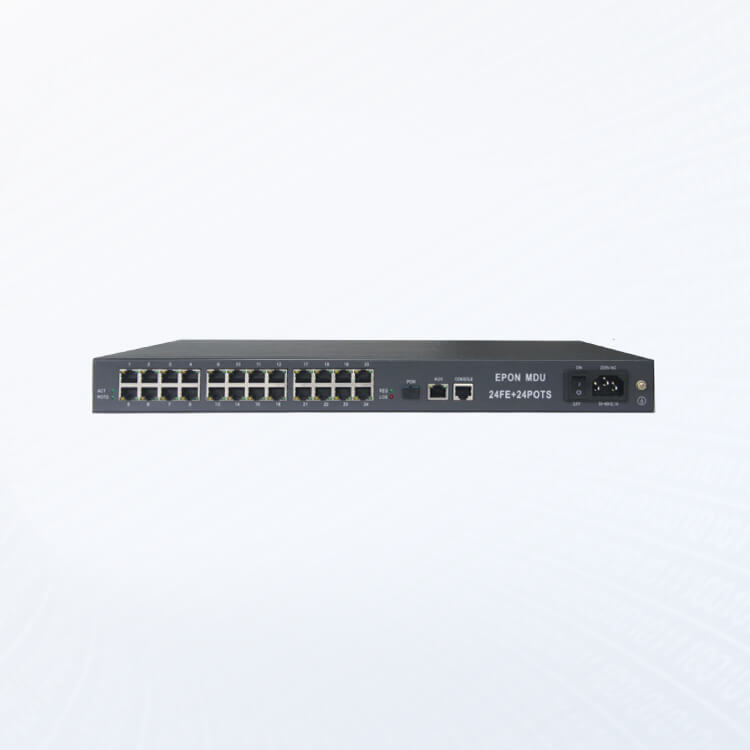

V5628-2C EPON 24FE 24POTS MDU是基于成熟稳定的千兆EPON技术和L3以太网交换技术，V-Solution.It自主研发的EPON宽带接入设备，基于成熟稳定的千兆EPON技术和L3以太网交换技术，具有高可靠性、良好的服务质量 (QoS) 保证，易于管理和灵活的网络功能。满足ITU-T、IEEE & YD/T技术要求的接入网技术要求。v5628-2C EPON 24FE 24POTS MDU是基于成熟稳定的千兆EPON技术和L3以太网交换技术，V-Solution.It自主研发的 “三网” 宽带接入设备，基于成熟稳定的千兆EPON技术和L3以太网交换技术，可靠性高，良好的服务质量 (QoS) 保证、易于管理和灵活的网络功能。满足ITU-T、IEEE & YD/T技术要求的接入网技术要求。
| 特色 |
- 即插即用并支持自动发现、自动配置、自动升级。
- 支持OAM SNMP管理。
- 防雷能力局域网: 4 kV，POTS: 4 kV，交流电: 6kV。
- 支持802.1ad(QinQ) 和组播。
- 支持线测试根据GR-909。
- 支持交流直流电源。
| 具体参数 |
| Model | V5628-2C |
| NNI | 1*EPON(PX20+),SC/UPC |
| UNI | 24*FE+24POTS |
| Dimension（W×H×D） | 480mm×44.5mm×240mm |
| Console | 3*RJ45（1 For EPON MAC,1 For Configuration,1 For VoIP） |
| Power Input | AC:100~240V + DC:-48V Dual Power Supply |
| Power Dissipation | ≤50W |
| Operating Temperature | -30~+55℃ |
| Operating humidity | 10~90%RH(non-condensing) |
| Storage Temperature | -40~+65℃ |
| Weight | 5Kg |
| Mounting | 19-inch rack,1U Rack |
| Layer2/3 Function | Up to 16 K MAC address； Support 4K VLANs and IEEE802.1Q/802.1p,based on MAC,IP Subnet and protocol.Support VLAN Double-Tag; Support IEEE802.1QinQ/802.1ad and VLAN transparent transmission; Support port stability statistic and monitoring; Support 1K multicast Route Table and support SCB; Support STP/RSTP; QoS:Support 8 levels CoS priority.Support SP,WRR,SP+WRR; Support IGMP Snooping; Support ACLbased on IP,TCP/UDP and protocol; Support Filter based on port,MAC,VLAN ID and IP(IPv4/IPv6). |
| EPON Function | Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah standard; Up to 20KM transmission Distance; Support Dynamic Bandwidth Allocation (DBA); Support ONU auto-discovery/link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration; Different user and different service could provide different QoS by means of different LLID channels; Support power-off alarm function,easy for link problem detection; Support broadcasting storm resistance function; Support port isolation between different ports; Specialized design for system breakdown prevention to maintain stable system; Support dynamic distance calculation on EMS online; |
| VoIP Funciton | Support SIP(IMS),H.248&MGCP protocol and It can well communicate with the mainstream soft switch platforms in the industry; Support heartbeat function and supports active / standby soft switch platform; Support ITU-T G.711,G.723.1 and G.729 speech codec; Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length; Support high/low speed fax/Modem, bypass fax, and T38 fax; Support InBand / RFC2833/SIP INFO, MD5 authentication, call forward, call waiting, hot-line call, and all kinds of value-added voice service. Multi-party conferencing Support Line testing according to GR-909 Support Modem(56Kbps) Suport PPPoE,DHCP and static IP; Support Web/CLI/SNMP |
